Product Description

Color: White, Black (Optional)

Operating voltage: 6V-24VDC (wide voltage)

Working temperature: -20 °C ~ +38 °C

Quiescent current: < 50uA

Output current: 5A

Trigger mode: Continuous trigger

Output Mode: Inductive Output

Delay range: Default setting 15S (15-240 seconds adjustable)

Induction mode: passive

Sensing angle: 120 degree cone angle

Sensing distance: 5-7m

Size: 50x40x22.5mm/1.97×1.57×0.87inch

PIR motion sensor can detect human movement by detecting infrared ray emitted by human body.

120 degrees cone angle detecting range and detecting distance is up to 5‑7m. High and stable sensitivity, effectively save energy and improve efficiency.

Widely used on the motion‑activated lighting, LED strips security system, automatic sensory device and more.

15‑240 seconds adjustable delay range for you to choose a suitable time, more humance.

Output voltage is equal to input voltage, low power consumption. Mini and compact so as to put it without destroying home decoration.​

This switch with PIR Infrared Motion sensor detector, can be used in corridors, bathrooms, basements, warehouses, garages and other places to achieve electrical automatic control functions. High and stable sensitivity, effectively save energy and money for you.​

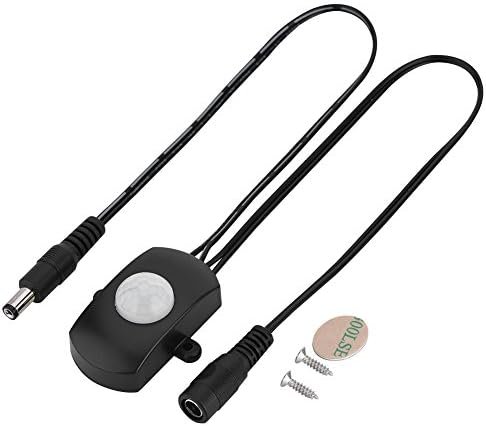

Package List: 1 x PIR Motion Sensor Power Switch 1 x Screw

Why does it stay on?

If the light is on all the time when the power is on, the positive and negative poles are reversed. If the positive and negative poles are connected incorrectly, the light will be on all the time. Please check if the wiring is correct.

PIR motion sensor can detect human movement by detecting infrared ray emitted by human body.
120 degrees cone angle detecting range and detecting distance is up to 5-7m. High and stable sensitivity, effectively save energy and improve efficiency.
Widely used on the motion-activated lighting, LED strips security system, automatic sensory device and more.
15-240 seconds adjustable delay range for you to choose a suitable time, more humance.
Output voltage is equal to input voltage, low power consumption. Mini and compact so as to put it without destroying home decoration.
